Planetary winches for commercial fishing boats, drilling equipment, pipe layers,cranes, tractor/skidders and dredges. Here are just a few samples of some of the Pullmaster equipment that we carry:

Rapid Reverse Winches/Hoists

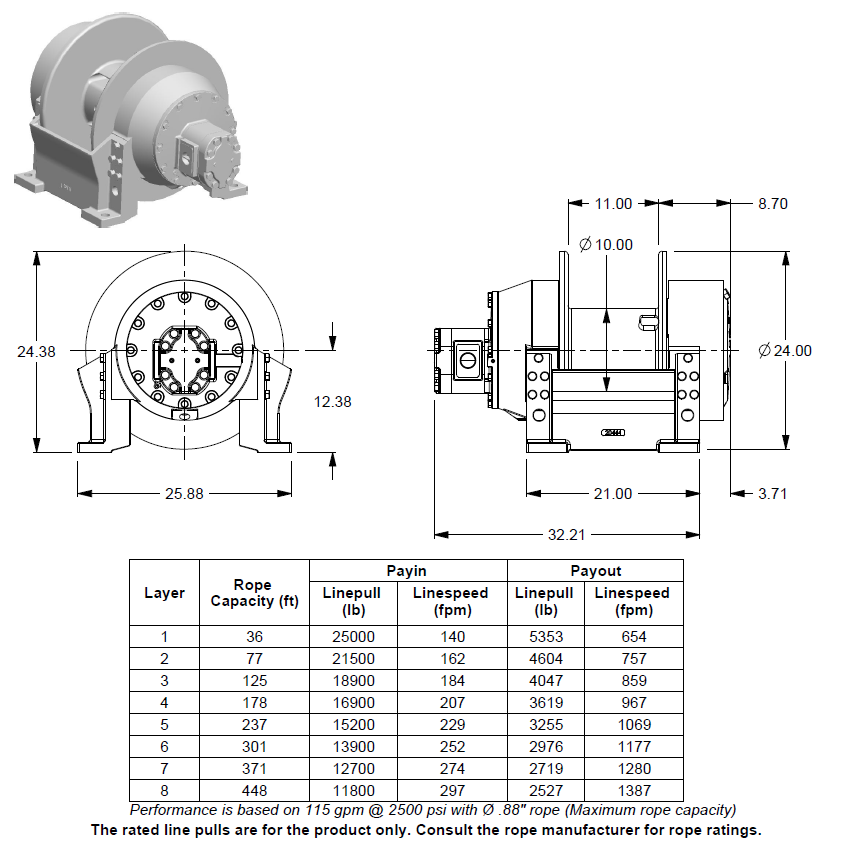

MODEL DISPLAYED: H25

Product Specifications
• Pulling Capacity: 25,000 lbs/11,340 kg
• Weight: 1,025 lbs/465 kg

Product Features
• Optional Hydraulic Motors
• Stainless Steel Drum Seal Surfaces
• Rapid Reverse
• Unidirectional sprag clutch
• Planetary gear train with anti-friction bearings used throughout winch assembly
• Internal spring applied, hydraulically released brake with unidirectional sprag clutch



Equal Speed Winches/Hoists

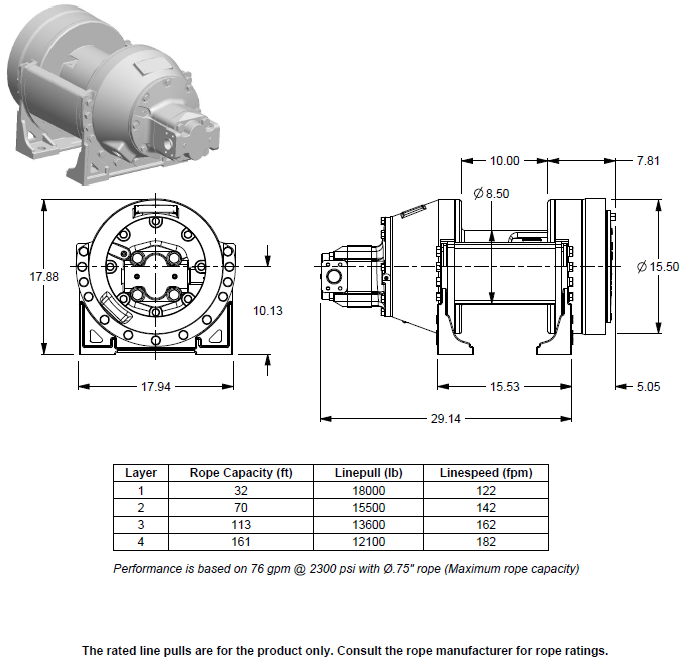

MODEL DISPLAYED: M18

Product Specifications
• Pulling Capacity: 18,000 lbs/8,165 kg
• Weight: 745 lbs/338 kg

Product Features
• Optional Hydraulic Motors
• Stainless Steel Drum Seal Surfaces
• Unidirectional sprag clutch
• Planetary gear train with anti-friction bearings used throughout winch assembly
• Internal spring applied, hydraulically released brake with unidirectional sprag clutch



FreeFall Winches/Hoists



MODEL DISPLAYED: M18

Product Specifications
• Pulling Capacity: 18,000 lbs/8,165 kg
• Weight: 745 lbs/338 kg

Product Features
• Optional Hydraulic Motors
• Stainless Steel Drum Seal Surfaces
• Rapid Reverse
• Unidirectional sprag clutch
• Planetary gear train with anti-friction bearings used throughout winch assembly
• Internal spring applied, hydraulically released brake with unidirectional sprag clutch



Planetary Gear Drives



MODEL DISPLAYED: PM136

Product Specifications
• Operating Torque: 136,000 in-lbs/15,366 Nm
• Torque: n/a
• Ratio: 41:1
• Brake Torque: Consult Factory
• Weight: 700 lbs/318 kg

Product Features
• Splined output shaft
• Equal Speed
• Equal Speed
• Anti-friction bearings
